Garmin GPS II+

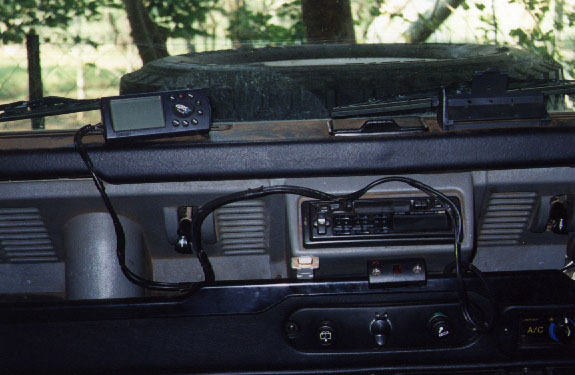

Garmin II+ mounted on a standard Garmin bracket. Note the DB9 connector under the radio (bottom left), which connect to the Garmin power cable's Tx and Rx data conductors.

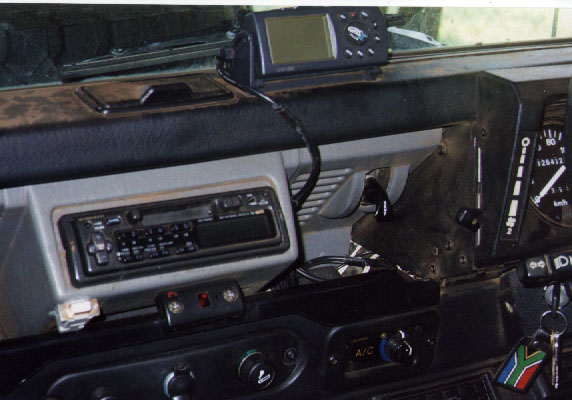

The long wires make it possible for the front passenger to play navigator.

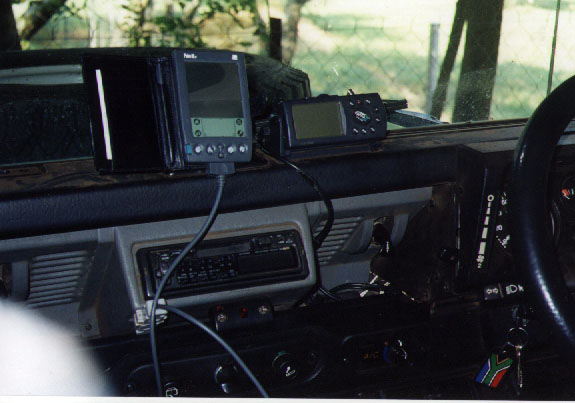

The reason for the DB9 connector. The Palm Pilot runs some home-brew software for waypoint and route manipluation.

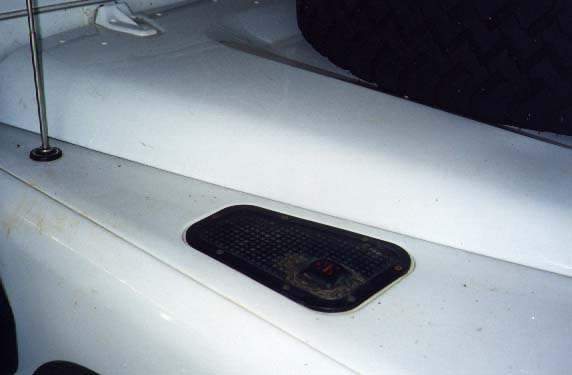

I mounted a Lowe powered antenna onto the front wing, where it has a good view of the sky without getting in the way.
